Description

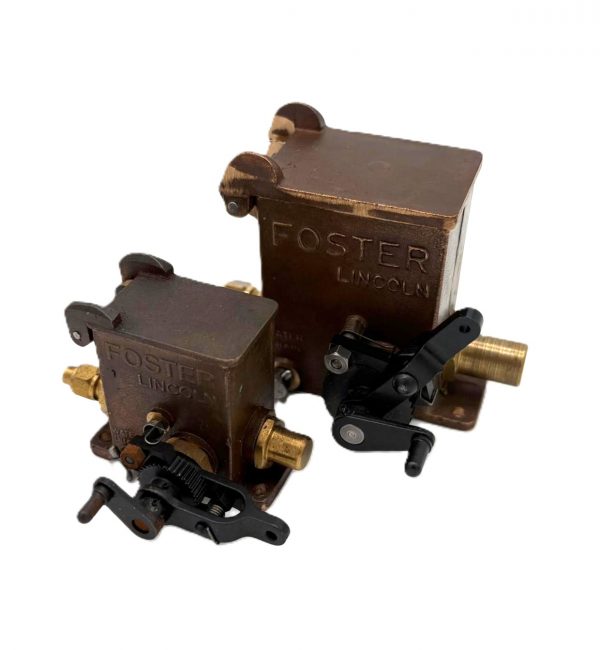

Available preassembled in 3″ and 4″ scale. High quality lubricators. Lost wax casting in gunmetal.
Approximate dimensions for 4″ scale Lubricator:
Width of body – 1 3/4″ (44mm)
Depth of body and base – 1 1/4″ (32mm)
Total width of base – 2.7″ (68mm)
Overall height – 2 5/16″ (59mm)
Hole centers in base – 57mm x 22mm. Holes 1/8″ (3.22mm)
Outlet union – 5/32 OD pipe
Approximate dimensions for 3″ scale Lubricator:
Width of body – 1 1/4″ (32mm)
Depth of body and base – 7/8″ (22mm)
Total width of base – 1 7/8″ (47mm)
Overall height – 1 5/8″ (41mm)
Hole centers in base – 40mm x 14mm. Hole 1/8″ (3.22mm)
Outlet pipe union – 1/8 OD pipe
All dimensions are approximate.
